VIBRATING SCREEN

VIBRATING SCREEN

Strong Vibrating Force With Various Types

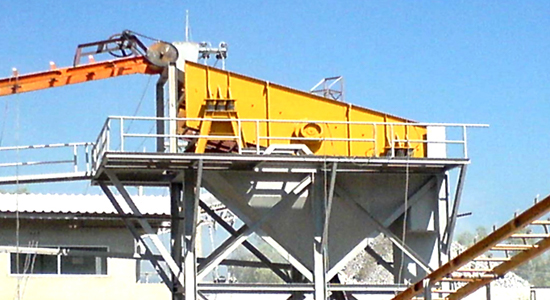

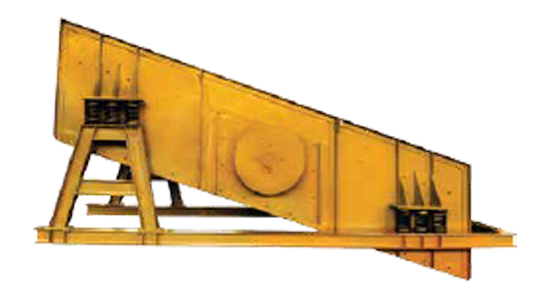

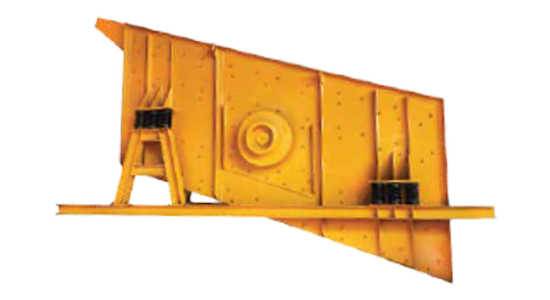

The general feature of this screen sieve is the centrifugal force which uses the pulley to transmit centrifugal force to vibrate through various sizes of screening filters. The stone sieve has also been widely used for screening stone for use in the mining industry and many more.

Usage and Application

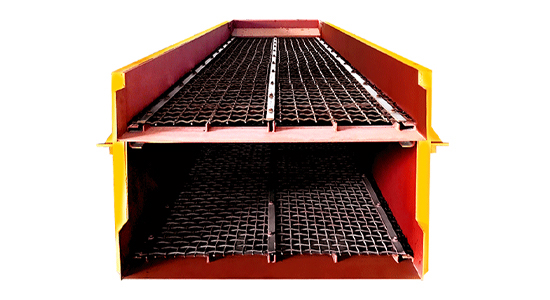

This vibrating screen moves round with multi-layers and high efficiency. It can screen the materials into multiple levels products according to different material size. lt is widely used for grading and screening in the industry of mining, building materials, transportation, energy, and chemical, etc.

Working Principle

The motor drives the vibrator via v-belt, which makes the screen to do a cyclical reciprocating in the direction of vibrator. The materials are sieved by making round movement in the screen.

Advantages

  • Various screening specifications
  • Screen cross-beam and box are connected by strong belts, simple structure, convenient in maintenance
  • High frequency, large-inclination structure and high efficiency
  • Large capacity and low power consumption
VIBRATING SCREEN

VIBRATING SCREEN

VIBRATING SCREEN

VIBRATING SCREEN

VIBRATING SCREEN

VIBRATING SCREEN

VIBRATING SCREEN

VIBRATING SCREEN

VIBRATING SCREEN

VIBRATING SCREEN

MODEL
SCREEN SIZE
mm.
SCREEN SIZE
Inch
SCREEN
DECKS
MOTOR
H.P.
R.P.M.
CAPACITY
TPH
WEIGHT
KGS
VS 482 1220 x 2400 4’ x 8’ 0“ 2 15 900 - 1000 Up to 100 1,200
VS 483 1220 x 2400 4’ x 8’ 0“ 3 15 900 - 1000 Up to 150 1,500
VS 484 1220 x 2400 4’ x 8’ 0“ 4 40 900 - 1000 Up to 150 1,800
VS 4122 1220 x 3660 4’ x 12’ 0“ 2 15 ~ 20 900 - 1000 Up to 200 2,000
VS 4123 1220 x 3660 4’ x 12’ 0“ 3 20 900 - 1000 Up to 200 2,400
VS 4124 1220 x 3660 4’ x 12’ 0“ 4 20 900 - 1000 Up to 200 2,600
VS 6162 1800 x 4800 6’ x 16’ 6“ 2 30 900 - 1000 Up to 240 4,500
VS 6163 1800 x 4800 6’ x 16’ 6“ 3 30 900 - 1000 Up to 240 5,500
VS 6164 1800 x 4800 6’ x 16’ 6“ 4 40 900 - 1000 Up to 240 6,500
VS 6202 1800 x 6000 6’ x 20’ 6“ 2 40 900 - 1000 Up to 300 5,000
VS 6203 1800 x 6000 6’ x 20’ 6“ 3 40 900 - 1000 Up to 300 6,500
VS 6204 1800 x 6000 6’ x 20’ 6“ 4 40 900 - 1000 Up to 300 8,000
VS 8202 2400 x 6000 6’ x 20’ 2 50 900 - 1000 Up to 600 8,000
VS 8203 2400 x 6000 6’ x 20’ 3 50 900 - 1000 Up to 600 9,000
